Delta SS System
Think of it as a “dumbwaiter in a box”—a fully self-contained vertical transport solution that arrives ready to install with its own engineered steel shaftway. The ultimate vertical transport solution for all kinds of application.
Elevating Operational Efficiency
The Delta FS (Free Standing)A modern dumbwaiter system with an integrated steel shaftway offers a practical, code-compliant solution for moving goods efficiently between levels—without the complexity of constructing a traditional hoistway. Engineered as a self-contained unit, this design simplifies installation, reduces coordination across trades, and provides consistent performance in both fire-rated and non-fire-rated applications. The prefabricated steel enclosure can be manufactured to meet required fire-resistance ratings where needed, while also offering a clean, durable structure for standard service environments. Ideal for restaurants, healthcare facilities, offices, and residential settings, this type of dumbwaiter enhances safety by minimizing manual handling and streamlining vertical transport, all within a compact footprint that supports faster project timelines and predictable costs.
Space-Saving
Minimal footprint required for installation.
Labor Reduction
Automate repetitive vertical transport tasks.
Enhanced Safety
Reduce risk of injury from carrying heavy loads.
Smooth Operation
Precision leveling and soft start/stop.
Use Cases

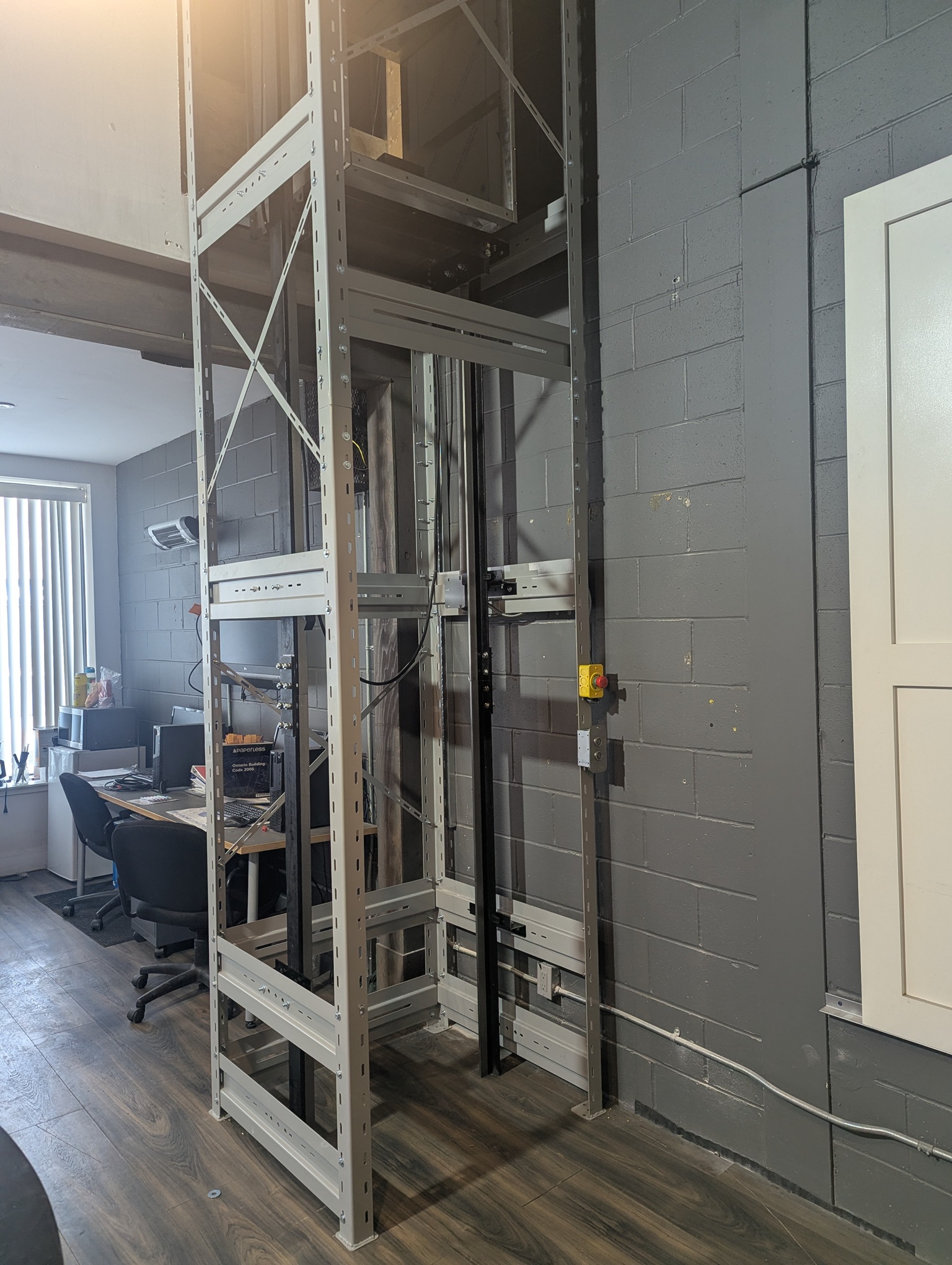

Self-Supporting Steel Hoistway Dumbwaiter
A self-supporting steel hoistway dumbwaiter is a
complete vertical transportation system. It is
supplied with an integrated structural steel enclosurethat helps eliminate the need for a conventionally constructed masonry or a framed shaft. Such a system can greatly reduce installation times and construction costs. It can also help in the reduction of cumbersome and time-consuming coordination between various trades. The engineered steel structure serves as the hoist way as well as the support framework for the dumbwaiter equipment. It provides a compact, durable and code-compliant installation for new constructions and retrofit applications. It is available in fire-rated and non-fire-rated configurations and can be installed in restaurants, hotels, healthcare facilities, offices, schools and residential buildings. This self-supporting dumbwaiter is an ideal option for wherever the efficient movement of food, supplies, documents and materials between
floors is a requirement.
"Dumbwaiter-in-a-box"
Two Models to chose from

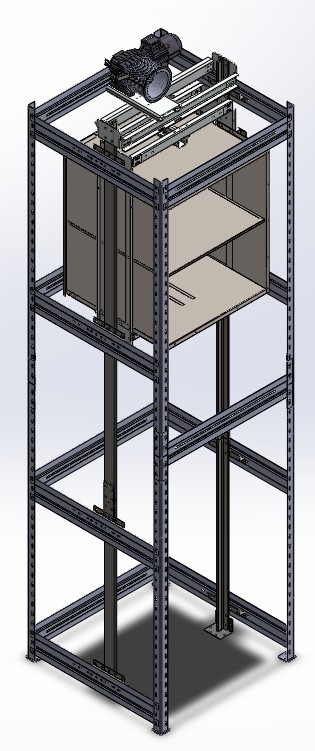

Steel Strecture Hoistway-SSH

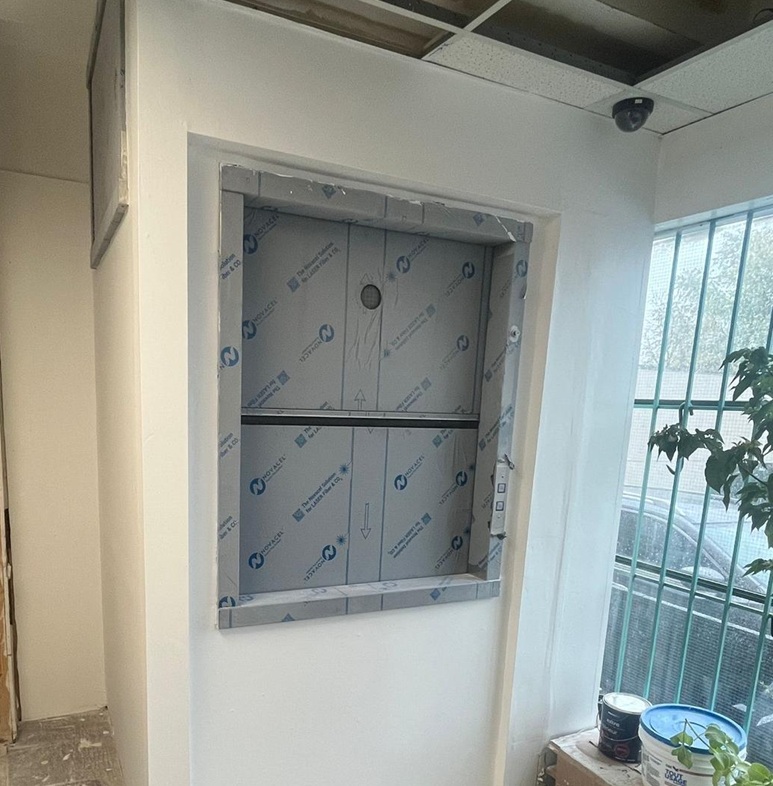

For fire rated and non-firerated application. Unit is providedwith self-supporting structure to be cladded by others withDrywall or other material.

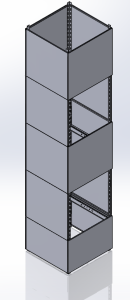

Steel Structure with Panels-SSP
For Non fire rated application. We Provide the Steel structure
and panels to cover the hoistway structure.
- No conventional shaft construction required – Faster installation and reduced project schedules
- Single-source responsibility for lift and shaftway – Ideal for retrofit and renovation projects
- Available in fire-rated and non-fire-rated designs -Reduced coordination between trades
- Factory-engineered and code-compliant system – Lower overall construction costs
Advanced Features
Engineered with the latest vertical transport technology to ensure a superior user experience.
Smooth & Quiet
Advanced motor control for near-silent operation.
Robust Design
Engineered to fit into demanding location with heavy lifting capacity.
Multiple Stops
Configurable for up to 6 landing levels.
Safety Interlocks
Full compliance with CSA B44 / ASME A17.1.
Custom Finishes
Stainless steel, Galvanized Steel , or custom powder coating.
Energy Efficient
Low power consumption standby mode.

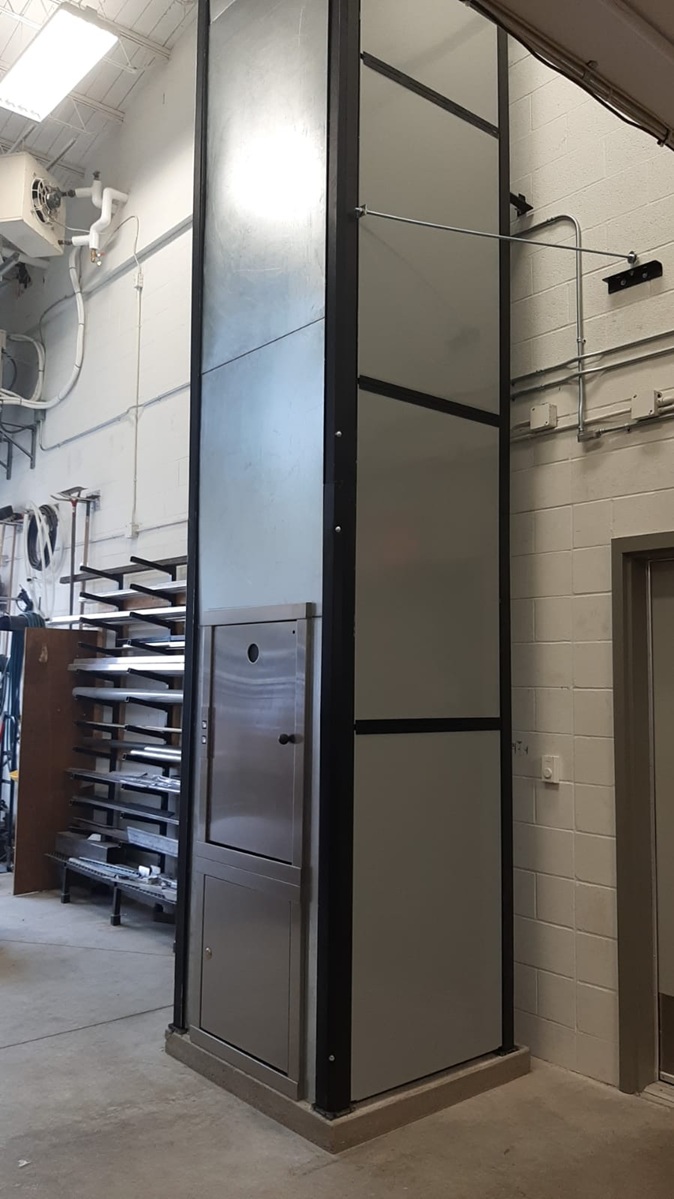

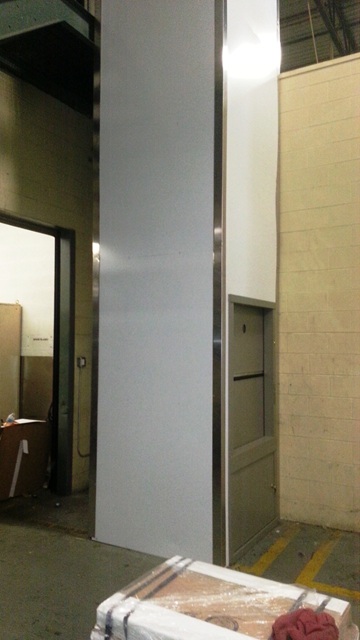

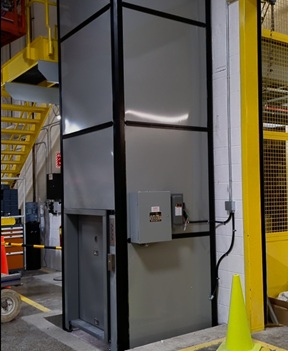

Visual Gallery
Technical Specifications
Parameter
Specification
capacity
45K(100lbs)-227Kg (500lbs)
speed
0.15 (30fpm)- .20 m/s(40fpm)
travel Height
Up to 35 ft
stops
Up to 4 stops
cab Dimensions
Up to 35 cubic ft (1m cubic meter)
door Type
Bi-parting, Swing or slide -up 1.5hrs fire reated.
power
208v-3 phase (standard) or 240V-1 Phase Optional
drive System
STEEL WIRE ROPE DRUM
control System
PLC- VFD Based
Technical Resources
Access comprehensive documentation for planning, installation, and maintenance.
Tailored to Your Vision
We understand that every project has unique requirements. The Delta LD offers extensive customization options to match your facility's aesthetic and functional needs.
Uncompromising Safety Standards
All Delta Dumbwaiter systems are fully compliant with **CSA B44** and **ASME A17.1** safety codes. Standard safety features include automatic door interlocks, emergency stop buttons, slack cable switches, and overload protection systems.
Ready to Start Your Project?
Speak with one of our vertical transport experts today for a custom consultation and quote.
Call Us
+1(416)886-3102 (CAN) /+1(716)-513-9535(USA)
Email Us
salesteam@deltadumbwaiters.com
Quick FAQ
What is the standard lead time for installation?
Typically, a standard installation takes 4-6 weeks from design approval to final commissioning.
Do your dumbwaiters comply with local safety codes?
Yes, all Delta Dumbwaiters are designed and installed to meet or exceed ASME A17.1 and local building codes.
